Acknowledgements

• {list here sources of all reused/adapted ideas, code, documentation, and third-party libraries – include links to the original source as well}

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

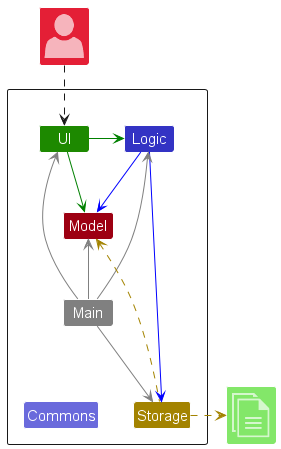

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app’s work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

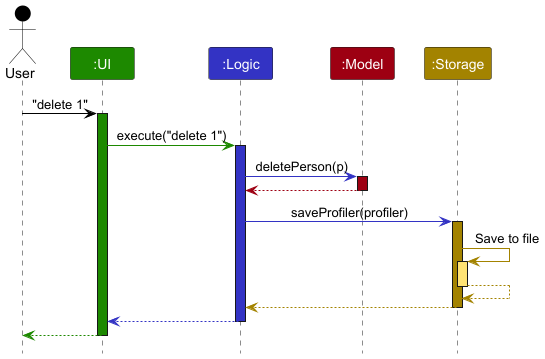

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

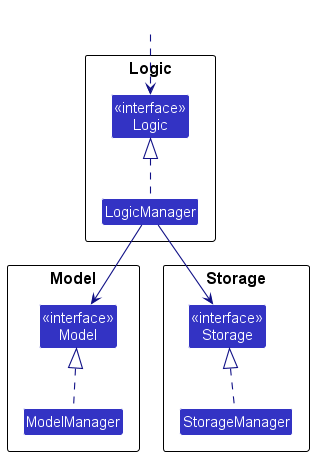

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml.

The ClearConfirmationWindow class implements the ConfirmationWindow interface. This design allows for the use of a test stub, ClearConfirmationWindowStub, which also implements the ConfirmationWindow interface. The purpose of this stub is to facilitate unit testing by enabling the injection of a mock confirmation window during JUnit tests.

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

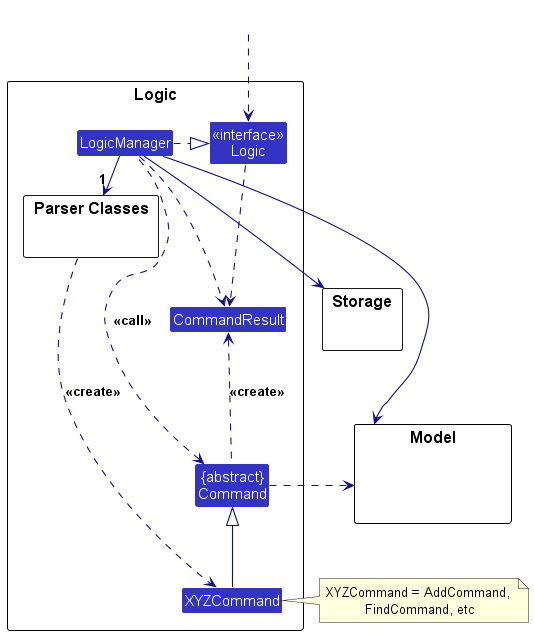

Here’s a (partial) class diagram of the Logic component:

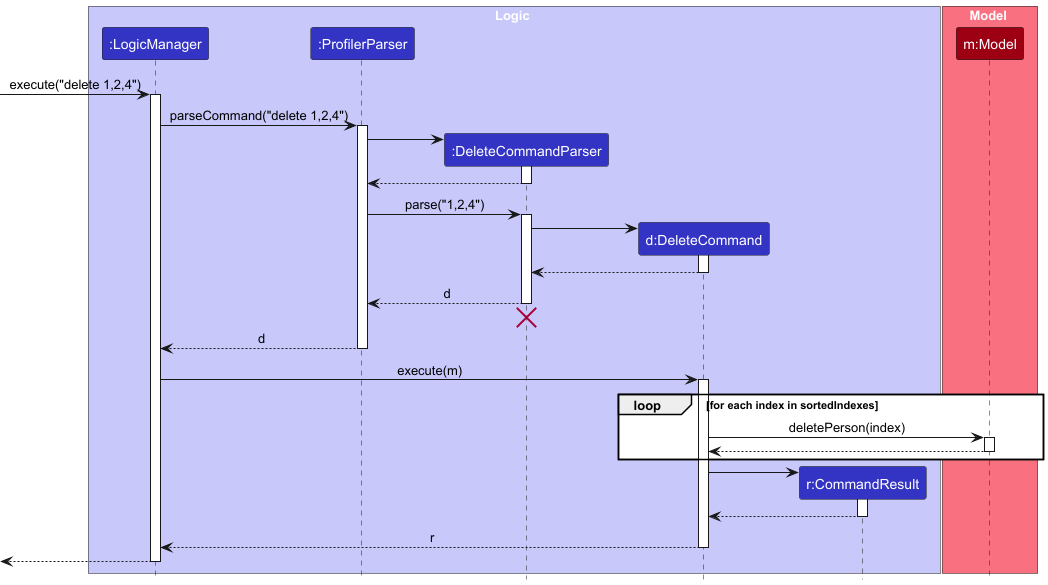

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1,2,4") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an ProfilerParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a student).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

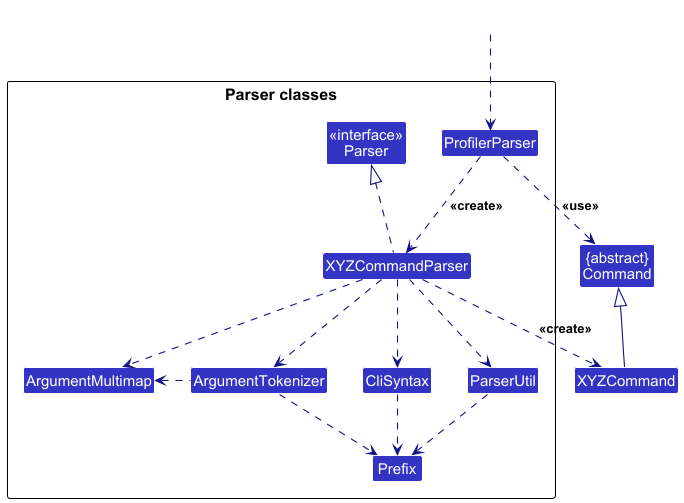

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the ProfilerParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the ProfilerParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Special Case: ClearCommandParser:

This class has an overloaded constructor, allowing for injection of a stub class ClearConfirmationWindowStub for unit tests, with the help of ConfirmationWindowFactory.

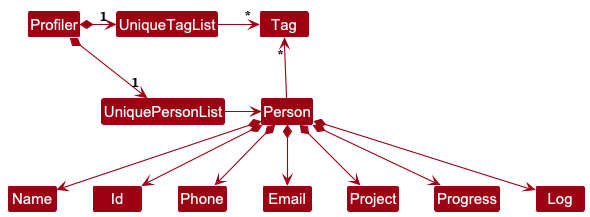

Model component

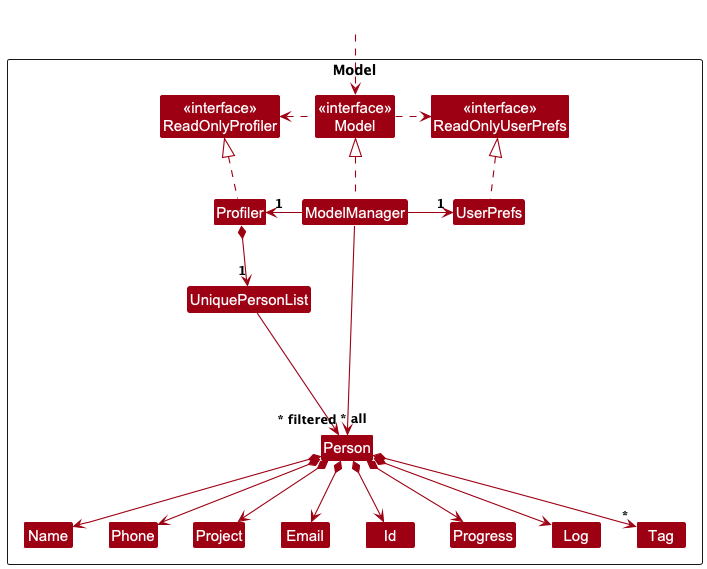

API : Model.java

The Model component,

• stores the profiler data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently ‘selected’ Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

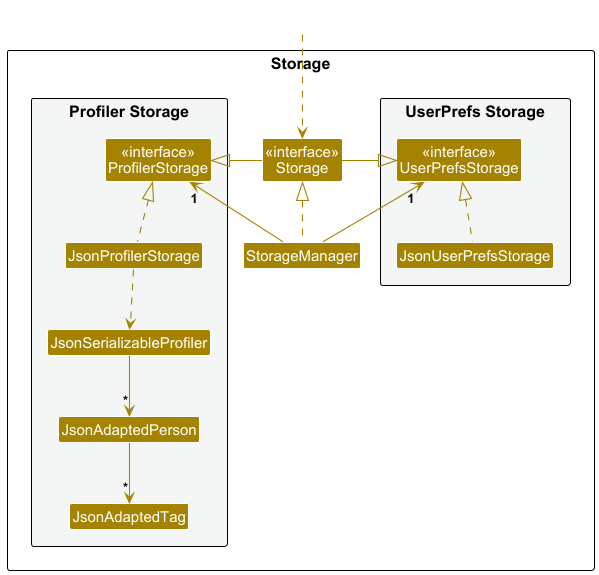

Storage component

API : Storage.java

The Storage component,

• can save both profiler data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both ProfilerStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.address.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Sort feature

Current Implementation

The SortCommand is responsible for sorting students in Prof-iler based on their progress, in either ascending (asc) or descending (desc) order. It interacts with the Model component to update the displayed student list based on the specified sorting order.

Class Structure

SortCommand

• SortCommand extends Command
• Stores a boolean flag isAscending to determine sorting order
• Executes sorting using a Comparator<Person> comparator on student’s progress values
• Calls model.updateSortedPersonList(comparator) to update the list

SortCommandParser

• Implements Parser<SortCommand>
• Parses user input to determine sorting order
• Throws a ParseException if input is invalid

Logic Interface

• Declares getSortedPersonList() for obtaining a sorted student list

LogicManager

• Implements Logic
• Handles command execution and updates the stored profiler after sorting
• Overrides the getSortedPersonList to obtain the sorted list from model

Model Interface

• Declares updateSortedPersonList(Comparator<Person>)
• Declares getSortedPersonList
• Updates the internal representation of the sorted student list

ModelManager

• Initializes sortedPersons as a SortedList<Person> with reference to filteredPerson
• Overrides getSortedPersonList to return the sorted list
• Overrides updateSortedPersonList to update and sort the list based on the comparator

Execution Flow

1. User Input: The user inputs the command sort asc or sort desc.
2. Parsing: SortCommandParser extracts sorting order from the user input.
3. Command Execution: The SortCommand applies the comparator and calls model.updateSortedPersonList(comparator) to update the Model.
4. Model Update: The ModelManager updates the internal sortedPersons list to reflect the new sorting order.
5. Storage Update: The sorted data is saved to the storage file.

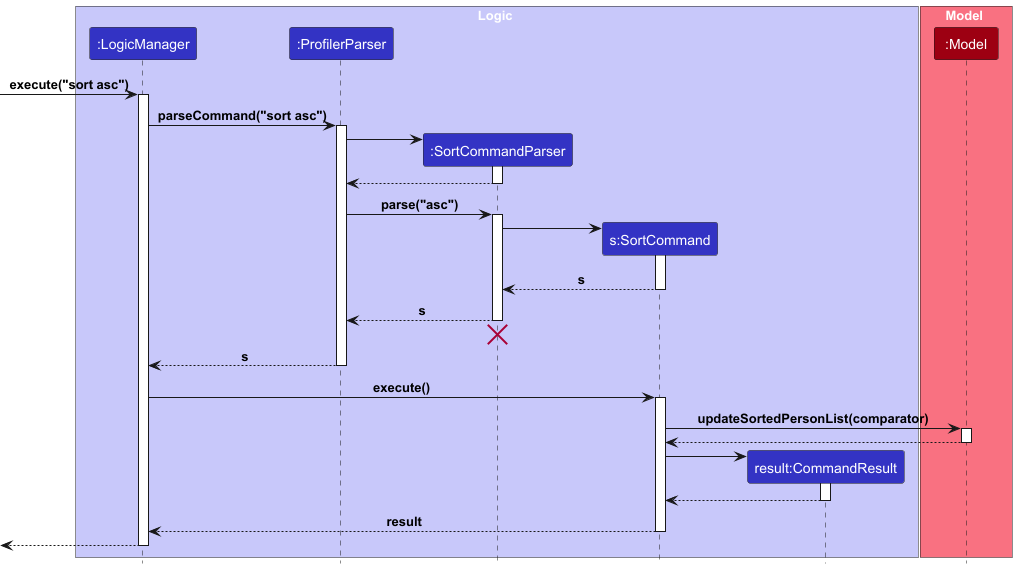

The following sequence diagram shows how the sort asc operation works:

Design considerations:

Aspect: How sorting is executed:

• Alternative 1 (current choice): Uses a comparator to sort the list of students.
• Pros: Easy to implement and understand

• Cons: May have performance issues for very large lists.

• Alternative 2: Implement a custom sorting algorithm
• Pros: Can be optimized for specific use cases.
• Cons: More complex to implement and maintain.

Interactions with other features:

Integration with FilterCommand

• The SortCommand works in conjunction with FilterCommand to refine and organize displayed results
• Users can first apply a filter (e.g., filter pr/ <ProjectName>) to view the students in the project that contains any of the given keywords.
• After filtering, users can execute sort asc to arrange students in those projects based on their progress in ascending order.
• This ensures that sorting only affects the currently displayed subset rather than the entire student list.

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedProfiler. It extends Profiler with an undo/redo history, stored internally as an profilerStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedProfiler#commit() — Saves the current profiler state in its history.
• VersionedProfiler#undo() — Restores the previous profiler state from its history.
• VersionedProfiler#redo() — Restores a previously undone profiler state from its history.

These operations are exposed in the Model interface as Model#commitProfiler(), Model#undoProfiler() and Model#redoProfiler() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

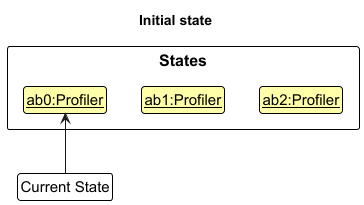

Step 1. The user launches the application for the first time. The VersionedProfiler will be initialized with the initial profiler state, and the currentStatePointer pointing to that single profiler state.

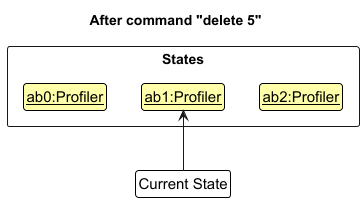

Step 2. The user executes delete 5 command to delete the 5th student in the profiler. The delete command calls Model#commitProfiler(), causing the modified state of the profiler after the delete 5 command executes to be saved in the profilerStateList, and the currentStatePointer is shifted to the newly inserted profiler state.

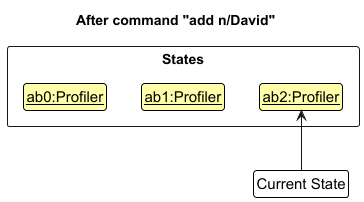

Step 3. The user executes add n/David …​ to add a new student. The add command also calls Model#commitProfiler(), causing another modified profiler state to be saved into the profilerStateList.

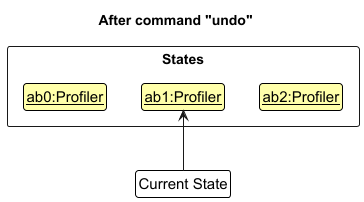

Step 4. The user now decides that adding the student was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoProfiler(), which will shift the currentStatePointer once to the left, pointing it to the previous profiler state, and restores the profiler to that state.

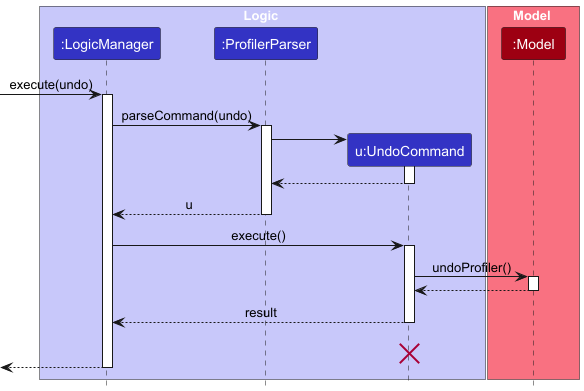

The following sequence diagram shows how an undo operation goes through the Logic component:

Similarly, how an undo operation goes through the Model component is shown below:

The redo command does the opposite — it calls Model#redoProfiler(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the profiler to that state.

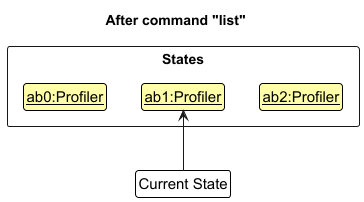

Step 5. The user then decides to execute the command list. Commands that do not modify the profiler, such as list, will usually not call Model#commitProfiler(), Model#undoProfiler() or Model#redoProfiler(). Thus, the profilerStateList remains unchanged.

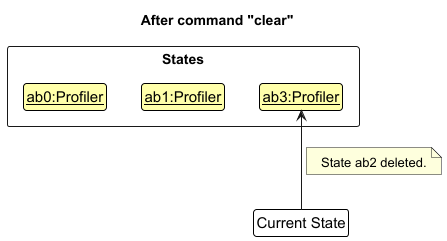

Step 6. The user executes clear, which calls Model#commitProfiler(). Since the currentStatePointer is not pointing at the end of the profilerStateList, all profiler states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David …​ command. This is the behavior that most modern desktop applications follow.

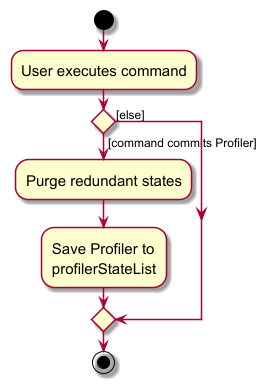

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire profiler.
  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.
• Alternative 2: Individual command knows how to undo/redo by itself.
  • Pros: Will use less memory (e.g. for delete, just save the student being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile: Research Professors in SoC

• has a need to manage a significant number of student researcher contacts and details
• prefer desktop apps over other types
• can type fast
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: A management system designed to help SoC professors organize, track, and maintain student research records over time that is optimized for use via Command Line Interface (CLI) while having the benefits of a Graphical User Interface (GUI).

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority	As a …​	I want to …​	So that I can…​
* * *	Professor at SoC	view all current research students under me	quickly access the list of current students
* * *	Professor at SoC	delete student entries that are no longer active	keep the database current and relevant
* * *	Professor at SoC	add a new student to a specific project	know who are part of that specific project
* *	Professor at SoC	filter students based on projects and tags	quickly find suitable students without going through the whole list
* *	Professor at SoC	find a student’s name in the directory	remember what project this student worked on under me
* *	Professor at SoC	mark student milestones as complete	track the students’ progress over the semester
* *	Professor at SoC	update and edit student information	have the most up-to-date information regarding the student
* *	Professor at SoC	tag what project the students are doing	quickly know who to contact for a particular research
* *	Professor at SoC	retrieve recently deleted changes	retrieve wrongly deleted data efficiently
* *	Professor at SoC	update progress of a student	monitor and update the student’s progress in that project
* *	Professor at SoC	Sort students based on the progress	know which students are behind progress
* *	Professor at SoC	delete multiple students at once	perform delete faster when I have multiple students to delete
* *	Professor at SoC	clear all data at once	prepare for a new academic year
* *	Professor at SoC	be asked for confirmation when clearing data	prevent accidentally clearing all data
* *	Professor at SoC	be notified when there are any duplicate entries	keep the data relevant
* *	Professor at SoC	clear students from a specific project after the project is completed	keep track of just the ongoing projects
* *	Professor at SoC	find all active research in a summary dashboard	get a quick overview of all the ongoing research
* *	Professor at SoC	receive reminders about the upcoming student deadlines	ensure timely feedback and submissions
* *	Professor at SoC	find students working on similar projects in the past	link up current students to past students for mentoring
* *	Professor at SoC	undo changes	maintain productivity when I accidentally make unwanted changes
* *	Professor at SoC	redo changes	change in case I change my mind after undoing a change
* *	Professor at SoC	have a help command	see all available commands
* *	Professor at SoC	use shortcuts to type a command faster	retrieve information faster
* *	Professor at SoC	use shortcuts to add new student profiles	create users quicker
* *	Professor at SoC	log notes about students	refer to them in the future and find out additional information about the student
* *	Professor at SoC	set a preferred name for my students	know what to call them
* *	Forgetful Professor at SoC	set profile picture for my students	remember how they look like
*	Vain Professor at SoC	set my own profile picture	admire my face everytime I use the application
*	Professor at SoC	export data about student research into a report format	share my research easily
*	Forgetful Professor at SoC	log research meetings with students	do not forgot what we discussed in the meeting
*	Professor at SoC	maintain a professional network with past students	reconnect with them for future collaboration
*	Professor at SoC	create charts and diagrams to compare students across multiple semesters	decide if I need to take in more students for my projects
*	Professor at SoC	export each student’s grades for the current semester	update their grades into the system easily
*	Professor at SoC	color tag each students	sort them effectively

Use cases

(For all use cases below, the System is the Prof-iler and the Actor is the user, unless specified otherwise)

Use case: UC01 List all students under User

MSS

1. User requests to list all students.
2. Prof-iler displays the list of all students under user.
   Use case ends.

Extensions

• 2a. The List is empty.
  Use case ends.

Use case: UC02 Delete a student

MSS

1. User requests to list all students (UC01)
2. Prof-iler shows a list of students.
3. User requests to delete the specific students in the list.
4. Prof-iler deletes the students.
   Use case ends.

Extensions

• 3a. The given index is invalid.

  • 3a1. Prof-iler shows an error message.
    Use case resumes at step 2.

Use case: UC03 Add a student

MSS

1. User requests to add the student.
2. User enters the required details to add a student.
3. Prof-iler adds the student.
4. Prof-iler displays the added student.
   Use case ends.

Extensions

• 2a. The input is invalid.
  • 2a1. Prof-iler shows an error message.
    Use case ends.

• 2b. The student already exists.
  • 2b1. Prof-iler shows an error message.
    Use case ends.


Use case: UC04 Edit a student

MSS

1. User request to edit the details of a specific student.
2. User enters the required input and details to be edited for that student.
3. Prof-iler updates the student with the new details.
   Use case ends.


Extensions

• 2a. The input is invalid.
  • 2a1. Prof-iler shows an error message.
    Use case ends.

Use case: UC05 Update progress of a student

MSS

1. User request to update the progress of the project of a specific student.
2. User enters the required input and the new progress value.
3. Prof-iler updates the progress of the project.
   Use case ends.


Extensions

• 2a. The input is invalid.
  • 2a1. Prof-iler shows an error message indicating invalid input.
    Use case ends.

• 2b. The progress value is invalid.
  • 2b1. Prof-iler shows an error message indicating invalid progress.
    Use case ends.

Use case: UC06 Log notes about a student

MSS

1. User request to log some notes of a specific student.
2. User enters the required input and notes regarding the student.
3. Prof-iler logs the students with the given notes.
   Use case ends.


Extensions

• 2a. The input is invalid.
  • 2a1. Prof-iler shows an error message.
    Use case ends.


Use case: UC07 Find students based on their name

MSS

1. User requests to find certain students based on the names.
2. User enters the required inputs and the keywords.
3. Prof-iler searches for the students based on the keywords.
4. Prof-iler displays all the students that matches the keywords.
   Use case ends.


Extensions

• 2a. The input is invalid.
  • 2a1. Prof-iler shows an error message.
    Use case ends.

• 3a. No student’s name matches the keywords.
  • 3a1. Prof-iler shows a message indicating that no student’s name matches the keywords.
    Use case ends.


Use case: UC08 Filter students based on project

MSS

1. User requests to filter students based on their project.
2. User enters the required inputs and the keywords.
3. Prof-iler searches for students with the project that matches the keywords.
4. Prof-iler displays all the students with projects that match the keywords.
   Use case ends.


Extensions

• 2a. The input is invalid.
  • 2a1. Prof-iler shows an error message.
    Use case ends.

• 3a. No project matches the given keyword.
  • 3a1. Prof-iler shows a message indicating that no project matches the keywords.
    Use case ends.


Use case: UC09 Sort students based on order of progress

MSS

1. User requests to sort students based on the order of progress.
2. User enters the required inputs and the order.
3. Prof-iler arranges the students based on the given order.
4. Prof-iler displays the students in the given order.
   Use case ends.


Extensions

• 2a. The input format is invalid.
  • 2a1. Prof-iler shows an error message.
    Use case ends.

• 2b. The given order is invalid.
  • 2b1. Prof-iler shows an error message indicating invalid order.
    Use case ends.


Use case: UC10 Clear all entries

MSS

1. User request to clear all entries.
2. Prof-iler asks for confirmation.
3. Prof-iler clears all entries.
   Use case ends.


Extensions

• 2a. The user declines the clearing of all entries.
  Use case ends.


Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be able to hold up to 1000 students without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. The datafile created by the program should be stored in a human-readable format.
5. Should work without requiring installation (i.e. packaged as a .jar file).
6. Should work without an internet connection, without depending on an online server.
7. Should follow the Object-oriented paradigm for ease of future expansion, where commands can be added with minimal changes to existing code.
8. The GUI should not cause any resolution-related inconveniences to the user for standard screen resolutions 1920x1080 and higher, and, for screen scales 100% and 125%. It should remain usable (all functions can be used even if the user experience is not optimal) for resolutions 1280x720 and higher, and, for screen scales 150%.
9. The file size for the .jar file should not exceed 100MB, and documents like PDF files should not exceed 15MB/file.

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS
• Use case: Description of a set of sequences of actions, including variants, that a system performs to yield an observable result of value to an actor (role played by user)
• MSS (Main Success Scenario): Describes the most straightforward interaction for a given use case, which assumes that nothing goes wrong
• Extensions: “Add-on”s to the MSS that describe exceptional/alternative flow of events
• Student ID: A unique identifier assigned to each student by the university
• Project: The title of the research project a student is working on

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample students. The window size may not be optimum.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Deleting a student

1. Deleting a student while all students are being shown

   1. Prerequisites: List all students using the list command. Multiple students in the list.

   2. Test case: delete 1
      Expected: First student is deleted from the list. Details of the deleted student shown in the status message. Timestamp in the status bar is updated.

   3. Test case: delete 0
      Expected: No student is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Sort Function

1. Sorting students by progress

   1. Test case: sort asc
      • Expected: Students are displayed in ascending order of their progress.
   2. Test case: sort desc
      • Expected: Students are displayed in descending order based on their progress values.
   3. Invalid test case: sort invalid
      • Expected: The application shows an error message detailing the usage of sort.

Filter Function

1. Filtering students by project

   1. Prerequisites: At least one student with project containing the word Prof-iler, and no students with project containing the word Invalid.

   2. Test case: filter pr/Prof-iler
      • Expected: Only students associated with the project “Prof-iler” are shown.
   3. Test case: filter pr/Invalid
      • Expected: An empty list is displayed.

2. Filtering students by tag

   1. Prerequisites: At least one student with tag containing the word Y4, and no students with tag containing the word Invalid.

   2. Test case: filter t/Y4
      • Expected: Only students tagged with “Y4” are shown.
   3. Test case: filter t/Invalid
      • Expected: An empty list is displayed.

3. Test case: Invalid command

   • Command: filter pr/Prof-iler t/Y4
   • Expected: The application shows an error message: Should only have one of pr/ or t/.

Appendix: Planned Enhancements

Team Size: 5

1. Update light theme for confirmation window when clearing records.
2. Improve UI to cater to extremely long values. Currently, if values are over a certain number of characters, it will be concatenated with ....
3. Allow change of theme with CLI command, to conform to Recommendation-CLI-First.
4. Allow help window to be closed via keyboard command, such as using the esc key.
5. Allow Filter Command to filter for projects that contain prefixes such as pr/ and t/ without error. Since a project name can take any value, the users are allowed to add projects with names such as pr/Project Prof-iler or even t/Project Orbital. However, filter command is not able to filter such projects efficiently in the presence of leading whitespaces in between commands. For example, filter pr/ pr/Project Prof-iler will lead to an error to indicate the presence of multiple prefixes pr/, similar for prefix t/. However, filter pr/pr/Project Prof-iler will work. This feature will be fixed in the future to ensure that filter command is able to parse any string after the prefix pr/ and t/ accurately while ignoring leading and trailing white spaces to achieve filtering of projects that contains prefixes pr/ and t/ in their name.
6. Allow names to accept special prefixes such as s/o, d/o, w/o, and @.
